LUXA DOB Intelligent LED luminaire

The LUXA DOB luminaire is designed to illuminate streets, parking lots and outside areas. The housing is made of aluminum with a tempered glass cover and PC lenses system. The housing has IP66 protection. Lumileds LED diodes provide luminous efficacy of 170 lm/W. The Ledolux DOB driver is controlled by means of a 0-10V analogue system and has 7 years warranty. The LUXA DOB luminaire is compatible with CASAMI and Rabbit.

The LUXA DOB luminaire is designed for professional use.

MAIN ADVANTAGES

TECHNICAL DATA

DOWNLOADS

MAIN ADVANTAGES OF THE LED LUMINAIRE LUXA DOB

Street LED luminaires has a long lifetime and low costs of exploitation. These luminaires are above-average lasting, have high protection rate, ensure good visibility, produced in an eco-friendly way and have an aesthetic look.

High-pressure die-cast aluminum provides effective heat dissipation, while maintaining high durability and lightness of the LED luminaire.
Powder coated housing with a self-cleaning coating is a standard in RAL 9006 color, it is an perfect anti-corrosion protection.
The diffuser of the luminaire is tempered glass that can be refined with an anti-reflective and self-cleaning function.
Street lighting - LUXA DOB luminaire is available in a wide range of optics adapted to illuminate various streets and roads.
The DOB technology driver placed directly on the LED module. This reduces the failure rate of the luminaire and extends its lifetime.
High power factor cosᵩ> 0.94 over the full control range.
Protection - built-in overvoltage protection up to 10 kV and thermal protection.
Savings - highly efficient LED luminaire (170 lm/W) reduces the costs of electricity consumption by over 50%*.
Standard 0-10 V control - a controllable, compatible with many control systems luminaire.
Possibility to install the NEMA socket in the upper part of the body makes the luminaire adjustable for popular Smart City lighting management systems.
Safety of use - the LED luminaire has CE, RoHs, photobiological certification.
ZETOM, TUV certificates - luminaire is checked for compliance with Polish standards.
7-year of warrantyfor the luminaire and post-warranty service.
Neutral light - the color temperature of the light perfectly fits as the main lighting of streets, parks, etc.

* compared to conventional light sources

ENEC+ certificate

ANALOGUE
CONTROL

SYSTEM RABBIT

SYSTEM CASAMBI

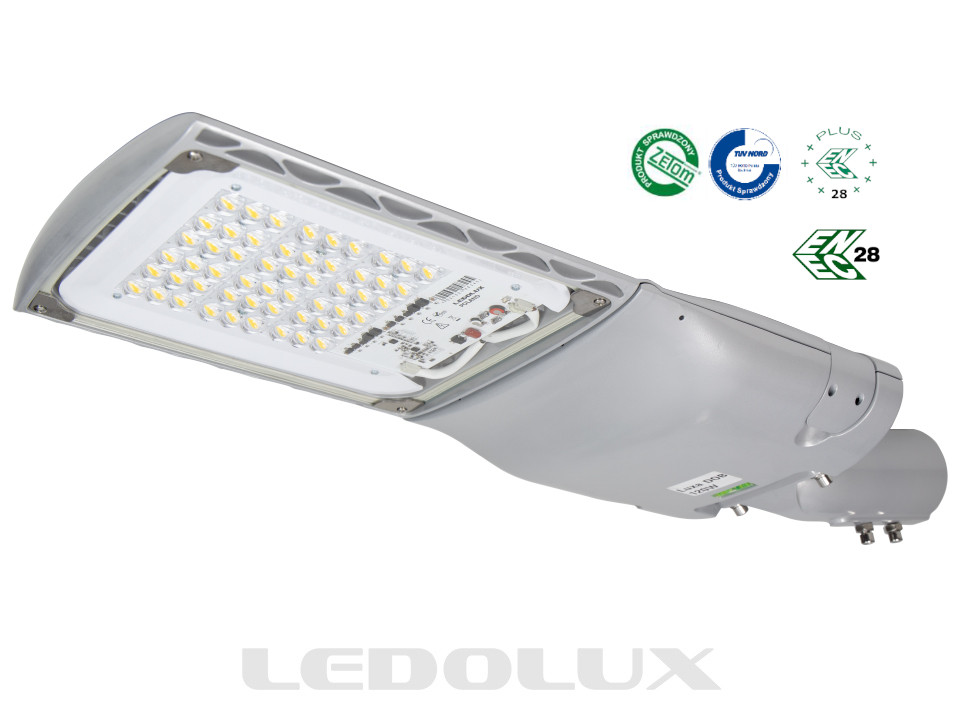

HAVE A CLOSER LOOK TO LUMINAIRE

APPLICATION OF THE LED LUMINAIRE

LUXA DOB luminaire is designed to illuminate streets, parks and outdoor areas. These LED luminaires have high luminous efficiency, high protection rate, low failure rrate, excellent color rendering.

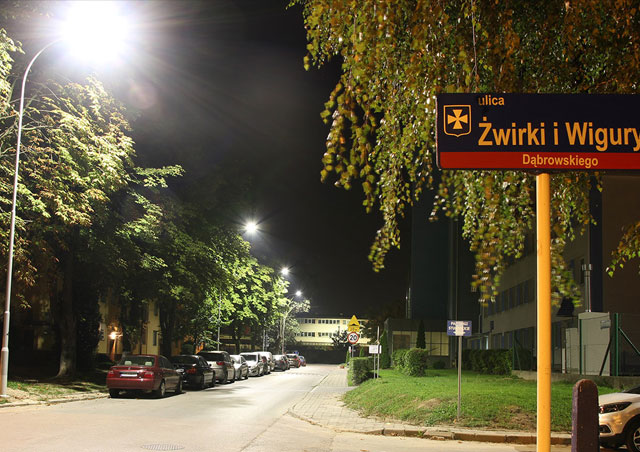

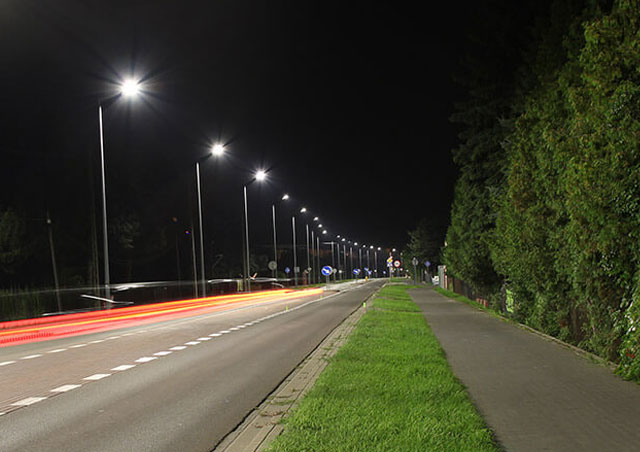

Streets and parks

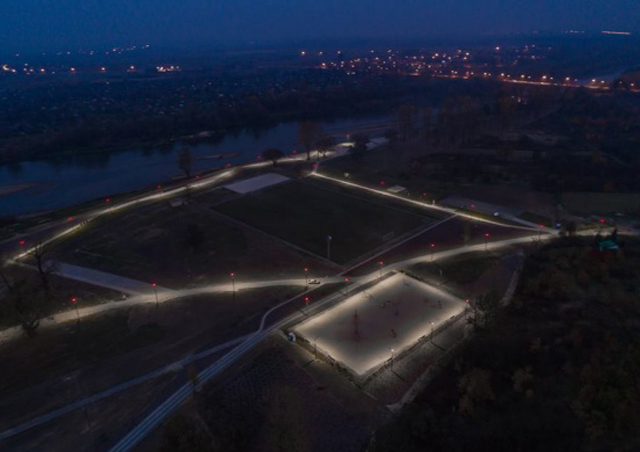

Outdoor areas

TECHNICAL DATA - LUXA DOB LUMINAIRE

Really good technical parameters of LUXA DOB means energy savings and lower costs for companies or cities. LED luminaires with long lifetime and low failure rate are good indeed for street illuminating. These luminaires have high resistance rate, quickly enlite, ensure perfect visibility and increase safty in the night.

POWER [W]	LUMINOUS FLUX [lm]	LUMINOUS EFFIACACY [lm/W]	COLOUR TEMPERATURE [K]	BEAM ANGLE [°]	PROTECTION CLASS [IP]	CONTROL	CERTIFIACTES
POWER [W]	LUMINOUS FLUX [lm]	LUMINOUS EFFIACACY [lm/W]	COLOUR TEMPERATURE [K]	BEAM ANGLE [°]	PROTECTION CLASS [IP]	CONTROL	CERTIFIACTES
30	5100	170	2700	TYP2-M	IP66	0-10V	CE, RoHS
30	5100	170	2700	TYP2-M	IP66	NEMA	CE, RoHS
30	5100	170	4000	TYP2-M	IP66	0-10V	CE, RoHS, ENEC+
30	5100	170	4000	TYP2-M	IP66	NEMA	CE, RoHS, ENEC+
30	5100	170	6000	TYP2-M	IP66	0-10V	CE, RoHS
30	5100	170	6000	TYP2-M	IP66	NEMA	CE, RoHS
30	5100	170	2700	TYP3-M	IP66	0-10V	CE, RoHS
30	5100	170	2700	TYP3-M	IP66	NEMA	CE, RoHS
30	5100	170	4000	TYP3-M	IP66	0-10V	CE, RoHS, ENEC+
30	5100	170	4000	TYP3-M	IP66	NEMA	CE, RoHS, ENEC+
30	5100	170	6000	TYP3-M	IP66	0-10V	CE, RoHS
30	5100	170	6000	TYP3-M	IP66	NEMA	CE, RoHS
30	5100	170	2700	TYP2-MS	IP66	0-10V	CE, RoHS
30	5100	170	2700	TYP2-MS	IP66	NEMA	CE, RoHS
30	5100	170	4000	TYP2-MS	IP66	0-10V	CE, RoHS, ENEC+
30	5100	170	4000	TYP2-MS	IP66	NEMA	CE, RoHS, ENEC+
30	5100	170	6000	TYP2-MS	IP66	0-10V	CE, RoHS
30	5100	170	6000	TYP2-MS	IP66	NEMA	CE, RoHS
30	5100	170	2700	PP	IP66	0-10V	CE, RoHS
30	5100	170	2700	PP	IP66	NEMA	CE, RoHS
30	5100	170	4000	PP	IP66	0-10V	CE, RoHS, ENEC+
30	5100	170	4000	PP	IP66	NEMA	CE, RoHS, ENEC+
30	5100	170	6000	PP	IP66	0-10V	CE, RoHS
30	5100	170	6000	PP	IP66	NEMA	CE, RoHS
40	6800	170	2700	TYP2-M	IP66	0-10V	CE, RoHS
40	6800	170	2700	TYP2-M	IP66	NEMA	CE, RoHS
40	6800	170	4000	TYP2-M	IP66	0-10V	CE, RoHS, ENEC+
40	6800	170	4000	TYP2-M	IP66	NEMA	CE, RoHS, ENEC+
40	6800	170	6000	TYP2-M	IP66	0-10V	CE, RoHS
40	6800	170	6000	TYP2-M	IP66	NEMA	CE, RoHS
40	6800	170	2700	TYP3-M	IP66	0-10V	CE, RoHS
40	6800	170	2700	TYP3-M	IP66	NEMA	CE, RoHS
40	6800	170	4000	TYP3-M	IP66	0-10V	CE, RoHS, ENEC+
40	6800	170	4000	TYP3-M	IP66	NEMA	CE, RoHS, ENEC+
40	6800	170	6000	TYP3-M	IP66	0-10V	CE, RoHS
40	6800	170	6000	TYP3-M	IP66	NEMA	CE, RoHS
40	6800	170	2700	TYP2-MS	IP66	0-10V	CE, RoHS
40	6800	170	2700	TYP2-MS	IP66	NEMA	CE, RoHS
40	6800	170	4000	TYP2-MS	IP66	0-10V	CE, RoHS, ENEC+
40	6800	170	4000	TYP2-MS	IP66	NEMA	CE, RoHS, ENEC+
40	6800	170	6000	TYP2-MS	IP66	0-10V	CE, RoHS
40	6800	170	6000	TYP2-MS	IP66	NEMA	CE, RoHS
40	6800	170	2700	PP	IP66	0-10V	CE, RoHS
40	6800	170	2700	PP	IP66	NEMA	CE, RoHS
40	6800	170	4000	PP	IP66	0-10V	CE, RoHS, ENEC+
40	6800	170	4000	PP	IP66	NEMA	CE, RoHS, ENEC+
40	6800	170	6000	PP	IP66	0-10V	CE, RoHS
40	6800	170	6000	PP	IP66	NEMA	CE, RoHS
50	8500	170	2700	TYP2-M	IP66	0-10V	CE, RoHS
50	8500	170	2700	TYP2-M	IP66	NEMA	CE, RoHS
50	8500	170	4000	TYP2-M	IP66	0-10V	CE, RoHS, ENEC+
50	8500	170	4000	TYP2-M	IP66	NEMA	CE, RoHS, ENEC+
50	8500	170	6000	TYP2-M	IP66	0-10V	CE, RoHS
50	8500	170	6000	TYP2-M	IP66	NEMA	CE, RoHS
50	8500	170	2700	TYP3-M	IP66	0-10V	CE, RoHS
50	8500	170	2700	TYP3-M	IP66	NEMA	CE, RoHS
50	8500	170	4000	TYP3-M	IP66	0-10V	CE, RoHS, ENEC+
50	8500	170	4000	TYP3-M	IP66	NEMA	CE, RoHS, ENEC+
50	8500	170	6000	TYP3-M	IP66	0-10V	CE, RoHS
50	8500	170	6000	TYP3-M	IP66	NEMA	CE, RoHS
50	8500	170	2700	TYP2-MS	IP66	0-10V	CE, RoHS
50	8500	170	2700	TYP2-MS	IP66	NEMA	CE, RoHS
50	8500	170	4000	TYP2-MS	IP66	0-10V	CE, RoHS, ENEC+
50	8500	170	4000	TYP2-MS	IP66	NEMA	CE, RoHS, ENEC+
50	8500	170	6000	TYP2-MS	IP66	0-10V	CE, RoHS
50	8500	170	6000	TYP2-MS	IP66	NEMA	CE, RoHS
50	8500	170	2700	PP	IP66	0-10V	CE, RoHS
50	8500	170	2700	PP	IP66	NEMA	CE, RoHS
50	8500	170	4000	PP	IP66	0-10V	CE, RoHS, ENEC+
50	8500	170	4000	PP	IP66	NEMA	CE, RoHS, ENEC+
50	8500	170	6000	PP	IP66	0-10V	CE, RoHS
50	8500	170	6000	PP	IP66	NEMA	CE, RoHS
60	10200	170	2700	TYP2-M	IP66	0-10V	CE, RoHS
60	10200	170	2700	TYP2-M	IP66	NEMA	CE, RoHS
60	10200	170	4000	TYP2-M	IP66	0-10V	CE, RoHS, ENEC+
60	10200	170	4000	TYP2-M	IP66	NEMA	CE, RoHS, ENEC+
60	10200	170	6000	TYP2-M	IP66	0-10V	CE, RoHS
60	10200	170	6000	TYP2-M	IP66	NEMA	CE, RoHS
60	10200	170	2700	TYP3-M	IP66	0-10V	CE, RoHS
60	10200	170	2700	TYP3-M	IP66	NEMA	CE, RoHS
60	10200	170	4000	TYP3-M	IP66	0-10V	CE, RoHS, ENEC+
60	10200	170	4000	TYP3-M	IP66	NEMA	CE, RoHS, ENEC+
60	10200	170	6000	TYP3-M	IP66	0-10V	CE, RoHS
60	10200	170	6000	TYP3-M	IP66	NEMA	CE, RoHS
60	10200	170	2700	TYP2-MS	IP66	0-10V	CE, RoHS
60	10200	170	2700	TYP2-MS	IP66	NEMA	CE, RoHS
60	10200	170	4000	TYP2-MS	IP66	0-10V	CE, RoHS, ENEC+
60	10200	170	4000	TYP2-MS	IP66	NEMA	CE, RoHS, ENEC+
60	10200	170	6000	TYP2-MS	IP66	0-10V	CE, RoHS
60	10200	170	6000	TYP2-MS	IP66	NEMA	CE, RoHS
60	10200	170	2700	PP	IP66	0-10V	CE, RoHS
60	10200	170	2700	PP	IP66	NEMA	CE, RoHS
60	10200	170	4000	PP	IP66	0-10V	CE, RoHS, ENEC+
60	10200	170	4000	PP	IP66	NEMA	CE, RoHS, ENEC+
60	10200	170	6000	PP	IP66	0-10V	CE, RoHS
60	10200	170	6000	PP	IP66	NEMA	CE, RoHS
70	11900	170	2700	TYP2-M	IP66	0-10V	CE, RoHS
70	11900	170	2700	TYP2-M	IP66	NEMA	CE, RoHS
70	11900	170	4000	TYP2-M	IP66	0-10V	CE, RoHS, ENEC+
70	11900	170	4000	TYP2-M	IP66	NEMA	CE, RoHS, ENEC+
70	11900	170	6000	TYP2-M	IP66	0-10V	CE, RoHS
70	11900	170	6000	TYP2-M	IP66	NEMA	CE, RoHS
70	11900	170	2700	TYP3-M	IP66	0-10V	CE, RoHS
70	11900	170	2700	TYP3-M	IP66	NEMA	CE, RoHS
70	11900	170	4000	TYP3-M	IP66	0-10V	CE, RoHS, ENEC+
70	11900	170	4000	TYP3-M	IP66	NEMA	CE, RoHS, ENEC+
70	11900	170	6000	TYP3-M	IP66	0-10V	CE, RoHS
70	11900	170	6000	TYP3-M	IP66	NEMA	CE, RoHS
70	11900	170	2700	TYP2-MS	IP66	0-10V	CE, RoHS
70	11900	170	2700	TYP2-MS	IP66	NEMA	CE, RoHS
70	11900	170	4000	TYP2-MS	IP66	0-10V	CE, RoHS, ENEC+
70	11900	170	4000	TYP2-MS	IP66	NEMA	CE, RoHS, ENEC+
70	11900	170	6000	TYP2-MS	IP66	0-10V	CE, RoHS
70	11900	170	6000	TYP2-MS	IP66	NEMA	CE, RoHS
70	11900	170	2700	PP	IP66	0-10V	CE, RoHS
70	11900	170	2700	PP	IP66	NEMA	CE, RoHS
70	11900	170	4000	PP	IP66	0-10V	CE, RoHS, ENEC+
70	11900	170	4000	PP	IP66	NEMA	CE, RoHS, ENEC+
70	11900	170	6000	PP	IP66	0-10V	CE, RoHS
70	11900	170	6000	PP	IP66	NEMA	CE, RoHS
80	13600	170	2700	TYP2-M	IP66	0-10V	CE, RoHS
80	13600	170	2700	TYP2-M	IP66	NEMA	CE, RoHS
80	13600	170	4000	TYP2-M	IP66	0-10V	CE, RoHS, ENEC+
80	13600	170	4000	TYP2-M	IP66	NEMA	CE, RoHS, ENEC+
80	13600	170	6000	TYP2-M	IP66	0-10V	CE, RoHS
80	13600	170	6000	TYP2-M	IP66	NEMA	CE, RoHS
80	13600	170	2700	TYP3-M	IP66	0-10V	CE, RoHS
80	13600	170	2700	TYP3-M	IP66	NEMA	CE, RoHS
80	13600	170	4000	TYP3-M	IP66	0-10V	CE, RoHS, ENEC+
80	13600	170	4000	TYP3-M	IP66	NEMA	CE, RoHS, ENEC+
80	13600	170	6000	TYP3-M	IP66	0-10V	CE, RoHS
80	13600	170	6000	TYP3-M	IP66	NEMA	CE, RoHS
80	13600	170	2700	TYP2-MS	IP66	0-10V	CE, RoHS
80	13600	170	2700	TYP2-MS	IP66	NEMA	CE, RoHS
80	13600	170	4000	TYP2-MS	IP66	0-10V	CE, RoHS, ENEC+
80	13600	170	4000	TYP2-MS	IP66	NEMA	CE, RoHS, ENEC+
80	13600	170	6000	TYP2-MS	IP66	0-10V	CE, RoHS
80	13600	170	6000	TYP2-MS	IP66	NEMA	CE, RoHS
80	13600	170	2700	PP	IP66	0-10V	CE, RoHS
80	13600	170	2700	PP	IP66	NEMA	CE, RoHS
80	13600	170	4000	PP	IP66	0-10V	CE, RoHS, ENEC+
80	13600	170	4000	PP	IP66	NEMA	CE, RoHS, ENEC+
80	13600	170	6000	PP	IP66	0-10V	CE, RoHS
80	13600	170	6000	PP	IP66	NEMA	CE, RoHS
90	15300	170	2700	TYP2-M	IP66	0-10V	CE, RoHS
90	15300	170	2700	TYP2-M	IP66	NEMA	CE, RoHS
90	15300	170	4000	TYP2-M	IP66	0-10V	CE, RoHS, ENEC+
90	15300	170	4000	TYP2-M	IP66	NEMA	CE, RoHS, ENEC+
90	15300	170	6000	TYP2-M	IP66	0-10V	CE, RoHS
90	15300	170	6000	TYP2-M	IP66	NEMA	CE, RoHS
90	15300	170	2700	TYP3-M	IP66	0-10V	CE, RoHS
90	15300	170	2700	TYP3-M	IP66	NEMA	CE, RoHS
90	15300	170	4000	TYP3-M	IP66	0-10V	CE, RoHS, ENEC+
90	15300	170	4000	TYP3-M	IP66	NEMA	CE, RoHS, ENEC+
90	15300	170	6000	TYP3-M	IP66	0-10V	CE, RoHS
90	15300	170	6000	TYP3-M	IP66	NEMA	CE, RoHS
90	15300	170	2700	TYP2-MS	IP66	0-10V	CE, RoHS
90	15300	170	2700	TYP2-MS	IP66	NEMA	CE, RoHS
90	15300	170	4000	TYP2-MS	IP66	0-10V	CE, RoHS, ENEC+
90	15300	170	4000	TYP2-MS	IP66	NEMA	CE, RoHS, ENEC+
90	15300	170	6000	TYP2-MS	IP66	0-10V	CE, RoHS
90	15300	170	6000	TYP2-MS	IP66	NEMA	CE, RoHS
90	15300	170	2700	PP	IP66	0-10V	CE, RoHS
90	15300	170	2700	PP	IP66	NEMA	CE, RoHS
90	15300	170	4000	PP	IP66	0-10V	CE, RoHS, ENEC+
90	15300	170	4000	PP	IP66	NEMA	CE, RoHS, ENEC+
90	15300	170	6000	PP	IP66	0-10V	CE, RoHS
90	15300	170	6000	PP	IP66	NEMA	CE, RoHS
100	17000	170	2700	TYP2-M	IP66	0-10V	CE, RoHS
100	17000	170	2700	TYP2-M	IP66	NEMA	CE, RoHS
100	17000	170	4000	TYP2-M	IP66	0-10V	CE, RoHS
100	17000	170	4000	TYP2-M	IP66	NEMA	CE, RoHS
100	17000	170	6000	TYP2-M	IP66	0-10V	CE, RoHS
100	17000	170	6000	TYP2-M	IP66	NEMA	CE, RoHS
100	17000	170	2700	TYP3-M	IP66	0-10V	CE, RoHS
100	17000	170	2700	TYP3-M	IP66	NEMA	CE, RoHS
100	17000	170	4000	TYP3-M	IP66	0-10V	CE, RoHS
100	17000	170	4000	TYP3-M	IP66	NEMA	CE, RoHS
100	17000	170	6000	TYP3-M	IP66	0-10V	CE, RoHS
100	17000	170	6000	TYP3-M	IP66	NEMA	CE, RoHS
100	17000	170	2700	TYP2-MS	IP66	0-10V	CE, RoHS
100	17000	170	2700	TYP2-MS	IP66	NEMA	CE, RoHS
100	17000	170	4000	TYP2-MS	IP66	0-10V	CE, RoHS
100	17000	170	4000	TYP2-MS	IP66	NEMA	CE, RoHS
100	17000	170	6000	TYP2-MS	IP66	0-10V	CE, RoHS
100	17000	170	6000	TYP2-MS	IP66	NEMA	CE, RoHS
100	17000	170	2700	PP	IP66	0-10V	CE, RoHS
100	17000	170	2700	PP	IP66	NEMA	CE, RoHS
100	17000	170	4000	PP	IP66	0-10V	CE, RoHS
100	17000	170	4000	PP	IP66	NEMA	CE, RoHS
100	17000	170	6000	PP	IP66	0-10V	CE, RoHS
100	17000	170	6000	PP	IP66	NEMA	CE, RoHS
120	20400	170	2700	TYP2-M	IP66	0-10V	CE, RoHS
120	20400	170	2700	TYP2-M	IP66	NEMA	CE, RoHS
120	20400	170	4000	TYP2-M	IP66	0-10V	CE, RoHS
120	20400	170	4000	TYP2-M	IP66	NEMA	CE, RoHS
120	20400	170	6000	TYP2-M	IP66	0-10V	CE, RoHS
120	20400	170	6000	TYP2-M	IP66	NEMA	CE, RoHS
120	20400	170	2700	TYP3-M	IP66	0-10V	CE, RoHS
120	20400	170	2700	TYP3-M	IP66	NEMA	CE, RoHS
120	20400	170	4000	TYP3-M	IP66	0-10V	CE, RoHS
120	20400	170	4000	TYP3-M	IP66	NEMA	CE, RoHS
120	20400	170	6000	TYP3-M	IP66	0-10V	CE, RoHS
120	20400	170	6000	TYP3-M	IP66	NEMA	CE, RoHS
120	20400	170	2700	TYP2-MS	IP66	0-10V	CE, RoHS
120	20400	170	2700	TYP2-MS	IP66	NEMA	CE, RoHS
120	20400	170	4000	TYP2-MS	IP66	0-10V	CE, RoHS
120	20400	170	4000	TYP2-MS	IP66	NEMA	CE, RoHS
120	20400	170	6000	TYP2-MS	IP66	0-10V	CE, RoHS
120	20400	170	6000	TYP2-MS	IP66	NEMA	CE, RoHS
120	20400	170	2700	PP	IP66	0-10V	CE, RoHS
120	20400	170	2700	PP	IP66	NEMA	CE, RoHS
120	20400	170	4000	PP	IP66	0-10V	CE, RoHS
120	20400	170	4000	PP	IP66	NEMA	CE, RoHS
120	20400	170	6000	PP	IP66	0-10V	CE, RoHS
120	20400	170	6000	PP	IP66	NEMA	CE, RoHS
160	27200	170	2700	TYP2-M	IP66	0-10V	CE, RoHS
160	27200	170	2700	TYP2-M	IP66	NEMA	CE, RoHS
160	27200	170	4000	TYP2-M	IP66	0-10V	CE, RoHS
160	27200	170	4000	TYP2-M	IP66	NEMA	CE, RoHS
160	27200	170	6000	TYP2-M	IP66	0-10V	CE, RoHS
160	27200	170	6000	TYP2-M	IP66	NEMA	CE, RoHS
160	27200	170	2700	TYP3-M	IP66	0-10V	CE, RoHS
160	27200	170	2700	TYP3-M	IP66	NEMA	CE, RoHS
160	27200	170	4000	TYP3-M	IP66	0-10V	CE, RoHS
160	27200	170	4000	TYP3-M	IP66	NEMA	CE, RoHS
160	27200	170	6000	TYP3-M	IP66	0-10V	CE, RoHS
160	27200	170	6000	TYP3-M	IP66	NEMA	CE, RoHS
160	27200	170	2700	TYP2-MS	IP66	0-10V	CE, RoHS
160	27200	170	2700	TYP2-MS	IP66	NEMA	CE, RoHS
160	27200	170	4000	TYP2-MS	IP66	0-10V	CE, RoHS
160	27200	170	4000	TYP2-MS	IP66	NEMA	CE, RoHS
160	27200	170	6000	TYP2-MS	IP66	0-10V	CE, RoHS
160	27200	170	6000	TYP2-MS	IP66	NEMA	CE, RoHS
160	27200	170	2700	PP	IP66	0-10V	CE, RoHS
160	27200	170	2700	PP	IP66	NEMA	CE, RoHS
160	27200	170	4000	PP	IP66	0-10V	CE, RoHS
160	27200	170	4000	PP	IP66	NEMA	CE, RoHS
160	27200	170	6000	PP	IP66	0-10V	CE, RoHS
160	27200	170	6000	PP	IP66	NEMA	CE, RoHS
200	34000	170	2700	TYP2-M	IP66	0-10V	CE, RoHS
200	34000	170	2700	TYP2-M	IP66	NEMA	CE, RoHS
200	34000	170	4000	TYP2-M	IP66	0-10V	CE, RoHS
200	34000	170	4000	TYP2-M	IP66	NEMA	CE, RoHS
200	34000	170	6000	TYP2-M	IP66	0-10V	CE, RoHS
200	34000	170	6000	TYP2-M	IP66	NEMA	CE, RoHS
200	34000	170	2700	TYP3-M	IP66	0-10V	CE, RoHS
200	34000	170	2700	TYP3-M	IP66	NEMA	CE, RoHS
200	34000	170	4000	TYP3-M	IP66	0-10V	CE, RoHS
200	34000	170	4000	TYP3-M	IP66	NEMA	CE, RoHS
200	34000	170	6000	TYP3-M	IP66	0-10V	CE, RoHS
200	34000	170	6000	TYP3-M	IP66	NEMA	CE, RoHS
200	34000	170	2700	TYP2-MS	IP66	0-10V	CE, RoHS
200	34000	170	2700	TYP2-MS	IP66	NEMA	CE, RoHS
200	34000	170	4000	TYP2-MS	IP66	0-10V	CE, RoHS
200	34000	170	4000	TYP2-MS	IP66	NEMA	CE, RoHS
200	34000	170	6000	TYP2-MS	IP66	0-10V	CE, RoHS
200	34000	170	6000	TYP2-MS	IP66	NEMA	CE, RoHS
200	34000	170	2700	PP	IP66	0-10V	CE, RoHS
200	34000	170	2700	PP	IP66	NEMA	CE, RoHS
200	34000	170	4000	PP	IP66	0-10V	CE, RoHS
200	34000	170	4000	PP	IP66	NEMA	CE, RoHS
200	34000	170	6000	PP	IP66	0-10V	CE, RoHS
200	34000	170	6000	PP	IP66	NEMA	CE, RoHS

DOWNLOAD FILES

Datasheet Ledolux Poland LUXA DOB

Photometric files LUXA DOB

EU Declaration Ledolux Poland LUXA DOB

TÜV NORD Certificate LUXA DOB

ENEC+ Certificate LUXA DOB

General Warranty Terms and Conditions LUXA DOB

Instruction manual LUXA DOB

COMPLETED PROJECTS - STREET LED LUMINAIRES

Our LUXA DOB luminaires illuminate streets, parks and different type of outdoor areas. All of our clients notice the real benefits of installing LED lighting. High efficiency of luminaire reduces maintenance costs.

Street LED luminaires for Stalowa Wola
Błonie nad Sanem

Street LED luminaires in Rzeszow

Street luminaires LED on Wolności St. in Mielec

SEE MORE PROJECTS
